AP330 series

[2013-1-21 16:56:10]

Key Features

Multi-functional

Plate, copy, print, and scan 4 functions in 1 (for AP330, AP330A, AP330B)

paper widened

plate paper widened to maximum 330mm from 320mm, no edge mark, more applicable for press use

ash-bottom prevented design

improved toner supply system: non cyclical toner structure thoroughly end the ash bottom problem because of

mixed cyling use of paper scraps ,talcum power and waste toner and greatly prolong the life of photosentive drum

and developer. (only for AP330B)

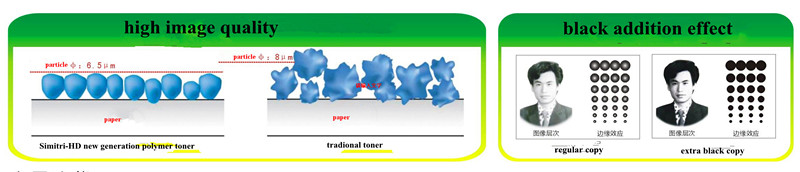

black addition design

common machine usually adjust panel density to add black, but bottom easy become ash. While our machine can

not only avoid ash bottom and edge effect problem but also improve the text blackness through internal optimal

design, meantime make parchment paper text more black and plate effect much better. (only for AP330A/AP330B)

on the version

place the manuscript on the copy table with the version template with scale,turn on version light, the text appear on the its backside, and adjust the position of manuscript according to the scale so that it is more accurate and convenient to version work(AP330A/AP330B)

money and electricity saving

exclusive enegry saving design：closing heating system even under the plate state can save electricity at 1kw/h , lower aging degree of fixing components,

prolong its life and reduce maintainance cost as well. (only for AP330B)

Main function

mode	AP330 (common type)	AP330A (black addition type)	AP330B( black addition and bottom ash prevented type)
mode	AP330 (common type)	AP330A (black addition type)	AP330B( black addition and bottom ash prevented type)
plate	one key switch	one key switch	one key switch
copy	one time scan , more copies	one time scan , more copies	one time scan , more copies
print	USB1.1/2.0 GDI	USB1.1/2.0 GDI	USB1.1/2.0 GDI
scan	TWAIN/WIA	TWAIN/WIA	TWAIN/WIA
black addition	__	___	multifunction switch, blackness increase 30-70%
bottom ash prevented	___	___	toner non-recycling structure( waste toner recyclable device)
on the version	___	___	version light and template included
energy saving	___	___	save electricity at 800w/h

main specifications

manuscript format	maximum A3/A3+ (297mm wide , 420mm+12mm long)	resolution ratio	600dpi x 600dpi color gradation 256, internal memory:32MB
available paper	plain paper, zinc oxide plate paper, water soluable paper, polyester paper,chrome paper,white cardboard paper for box use, parchment paper, film film	options	squirrel-cage solid version machine, oven solid version machine, working table
available paper		preheat	within 30s (AP330/AP330A), 0 second (AP330B)
plate paper size	330mm wide, 500mm long	speed	18sheets/minute
paper thickness	60-500g/m2	zoom	60-200%(1% unit)
gripe edge	digitally 0-50mm	volume	570x531x449mm
paper capacity	copy paper:350 sheets + multi function bypass hand tray 100sheet plate paper: through by bypass	weight	about 23.5kg
paper capacity		power consumption	AC220-240V 800W

specifications and configuration of AP330 series
mode	AP330(common type)	AP330+(black addition type)	AP330A(upgrade)	AP330B (upgrade black addition and bottom ash prevented type)	AP330B+(upgrade black addition bottom ash prevent only plate type)
main function	plate, copy , print, scan	plate, copy , print, scan	plate, copy , print, scan	plate, copy , print, scan	plate, print, scan
black additon	----------	switch avialable：blackness increase 50% LED	switch avialable：blackness increase 50% LED	switch avialable： blackness increase 50% LED	switch avialable： blackness increase 50% LED
switch	LED light on (plate and copy)	LED light on (plate and copy)	directly switch from plate to copy, LED light on	no need to switch, directly print and plate	no need to switch, directly print and plate
panel	"＋"navigation key	"＋"navigation key	number key, LCD	color LCD touch sceen	color LCD touch sceen
speed	18sheets/minute	18sheets/minute	19sheets/minute（A4 horizontal）	18sheets/minute	18sheets/minute
on the version	--------	---------	version light switch available	version light switch available	version light switch available
fixation	fixation/non-fixation	fixation/non-fixation	fixation/non-fixation	direct fixation	no fixation
retouch	clean with cotton ball	clean with cotton ball	clean with cotton ball	scan into e-document for retouching, water soluble paper and polyester paper can be retouched by correction liquid	clean with cotton ball or scan into e-document for retouching
mirror image	can proceed image through software WPS、Graphics9	can proceed image through software WPS、Graphics9	can proceed image through software WPS、Graphics9	mirror image function included, all software supported	mirror image function included, all software supported
print	GDI included	GDI included	GDI included	PCL、SP included	PCL、SP included
scan	TWAIN	TWAIN	color scan	color scan	color scan
network print	not supported	not supported	buy on your selection	standard configuration	standard configuration
internal memory	32MB(standard configuration)	32MB(standard configuration)	128MB(standard configuration)	576MB(standard configuration)	576MB(standard configuration)
resolution ratio	300dpi×600dpi600dpi×600dpi color gradation 256	300dpi×600dpi600dpi×600dpi color gradation 256	600dpi*600dpi color gradation 256	600dpi-1200dpi，color gradation 256	600dpi-1200dpi，color gradation 256
bottom ash prevented	---------	----------	----------	bottom ash structure: waste toner recycling device	bottom ash structure: waste toner recycling device
effective breadth	A3	A3	A3	A3+	A3+
gripe edge	knob adjustment range: 0-60mm	knob adjustment range: 0-60mm	knob adjustment range: 0-60mm	host setting:0-4.2mm	host setting:0-4.2mm
application paper	zinc oxide plate paper、water soluable paper、polyester paper、parchment paper chrome paper、film film	zinc oxide plate paper、water soluable paper、polyester paper、parchment paper chrome paper、film film	zinc oxide plate paper、water soluable paper、polyester paper、parchment paper chrome paper、film film	zinc oxide plate paper、water soluable paper、polyester paper、parchment paper chrome paper、film film	zinc oxide plate paper、water soluable paper、polyester paper、parchment paper chrome paper、film film
paper thickness	60-500g/m2	60-500g/m2	60-500g/m2	60-500g/m2	60-500g/m2
paper size	length: 500mm width: 330mm (no fixation)，320mm(direct fixation)	length: 500mm width: 330mm (no fixation)，320mm(direct fixation)	length: 500mm width: 330mm (no fixation)，320mm(direct fixation)	length:460mm width：330mm	length:500mm width: 330mm
plate thickness	60-600g/m2	60-600g/m2	60-600g/m2	60-600g/m2	60-600g/m2
zoom	25～400%	25～400%	25～400%	25～400%	25～400%
options	not supported	not supported	document feeder	duplexer、document feeder	duplexer、document feeder
volume	570×531×449	570×531×449	607×570×572	620×688×648mm	620×688×648mm
weight	about 23.5kg	about 23.5kg	about 30.2kg	about 60kg	about 56kg
power consumption	AC220-240V 0.8kW	AC220-240V 0.8kW	AC220-240V 0.8kW	AC220-240V1.25kW	AC220-240V0.25kW
